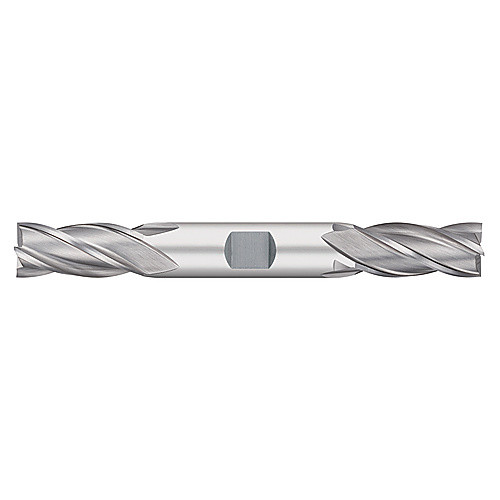

823 9/16 DE 4F COB- 5/8SH
Square End Mill; 9/16″ Dia. × 1-3/8″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 4 FL ; HSS ; Uncoated
| Cutting Diameter (DC) | 9/16″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-3/8″ | Usable Length (LU) | 1-3/8″ |
| Overall Length (OAL) | 5″ | Tool Type | End Mill |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.5625″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.303
