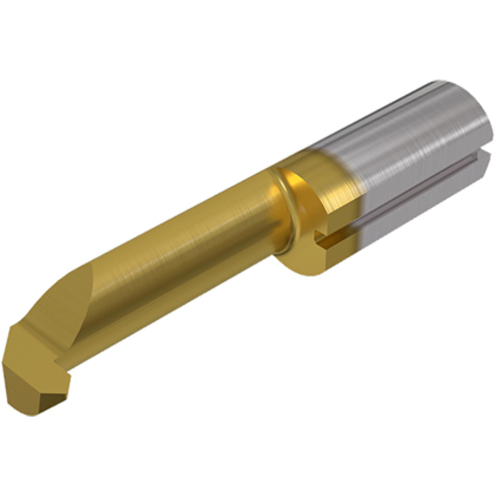

PICCO L 060.5-20 IC228
Tool; 0.197″ Shank Dia. × 0.028″ Max Depth × 1.378″ OAL × 0.0079″ Corner Radius ; Carbide ; Left Hand ; TiCN+TiN ; IC228

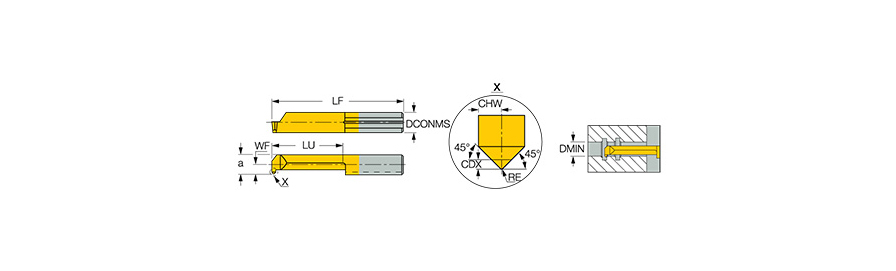

| Connection Diameter Machine Side (DCONMS) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Cutting Position | Internal |
| Cutting Depth Maximum (CDX) | 0.028″ | Application | | Int. Turn & Chamfering | |
| Overall Length (OAL) | 1.378″ | Tool Type | Solid Carbide Turn Tool |
| Cutting Direction (HAND) | Left Hand | Minimum Bore Diameter (DMIN) | 0.197″ |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.173″ |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC228 | Body Material | Carbide |
Product Features
| Family Description | Inserts for internal turning and 45° chamfering, Dmin .197″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.022
