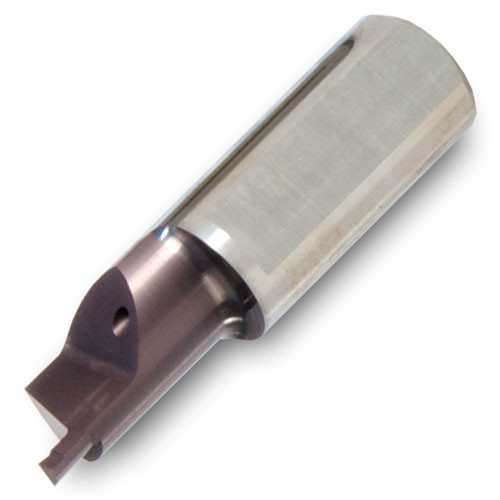

MINAR07-200200D060 TT9030
Tool; 0.276″ Shank Dia. × 0.079″ CW × 0.157″ Max Depth × 1.417″ OAL × 1.25 mm Corner Radius ; Carbide ; Right Hand ; TiAlN ; TT9030
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Application | | Face Grooving | Int. Face Grooving | |
| Corner Radius (RE) | 1.25 mm | Tool Type | Face Solid, Grooving &Turning grooving |
| Cutting Width (CW) | 0.079″ | Max. Face Grooving Feed (ffg(max)) | 0.05 mm/rev |
| Cutting Depth Maximum (CDX) | 0.157″ | Min. Face Grooving Feed (ffg(min)) | 0.02 mm/rev |
| Overall Length (OAL) | 1.417″ | Axial Groove Outside Diameter Minimum (DAXN) | 0.236″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 0.205″ |
| Cutting Edge Material | Carbide | Cutting Length | 0.83″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | TT9030 | Body Material | Steel |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | | Overhang Minimum (OHN) | 20 mm |
| Cutting Position | External |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.037
