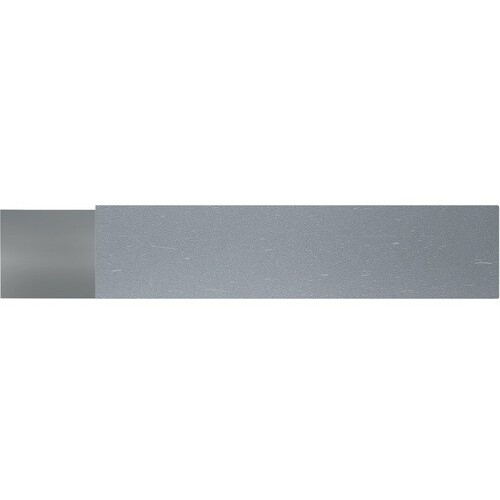

1/4 × 1/4 × 1-1/2″ OAL; RH; 1/8″ Tip - Brazed Tool Bit
Tool; 1/4″ Shank Dia. × 0.2″ CW × 0.185″ Max Depth × 1-1/2″ OAL ; Carbide ; Right Hand ; Uncoated ; Micrograin
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Style | Flat |
| Cutting Width (CW) | 0.2″ | Tool Type | Brazed Tool Bit |
| Cutting Depth Maximum (CDX) | 0.185″ | Height | 1/4″ |
| Overall Length (OAL) | 1-1/2″ | Blade Thickness | 1/8″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 1/4″ |
| Cutting Edge Material | Carbide | Cutting Length | 0.185″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | Micrograin | Body Material | Steel |
Product Features
| Remarks | •Brazed Box-Turning Tools •For Box-Turning up to 5/8″ Depth per Pass | Country of Origin | USA |
Shipping Info
Package Length
1.55000
Package Width
.34000
Package Height
.40000
Package Weight
0.026
