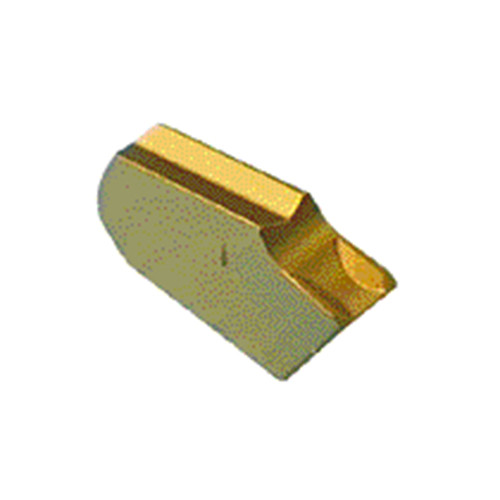

PICCO L 005.0150-30 IC228
| Connection Diameter Machine Side (DCONMS) | 0.197″ | Application | | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0″ | Tool Type | Solid Carbide Turn Tool |
| Cutting Width (CW) | 0.059″ | Minimum Bore Diameter (DMIN) | 0.197″ |
| Cutting Depth Maximum (CDX) | 0.039″ | Max. Face Grooving Feed (ffg(max)) | 0.05 mm/rev |
| Overall Length (OAL) | 1.772″ | Min. Face Grooving Feed (ffg(min)) | 0.02 mm/rev |
| Cutting Direction (HAND) | Left Hand | Axial Groove Outside Diameter Minimum (DAXN) | 8 mm |
| Cutting Edge Material | Carbide | Front End Width (a) | 0.173″ |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC228 | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Overhang Minimum (OHN) | 1.142″ |
| Cutting Position | Internal |
Product Features
| Family Description | Inserts for grooving and turning, Dmin .157″. | Country of Origin | Germany |
Shipping Info
Package Weight
0.024
