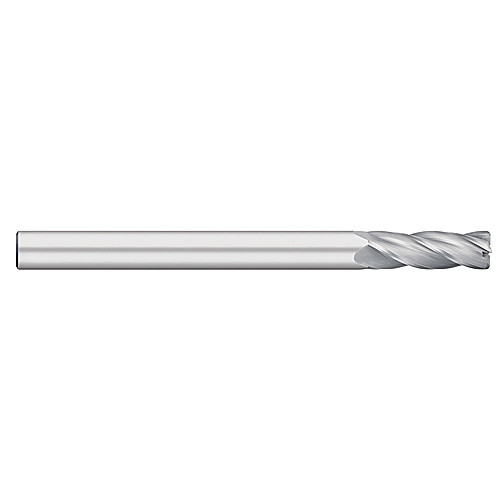

745 3/8 4F 6OAL XL R.030
Corner Radius End Mill; 3/8″ Dia. × 1-1/2″ LOC × 3/8″ Shank Dia. × 6″ OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 6″ | Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| Flute Count (NOF) | 4 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.332
