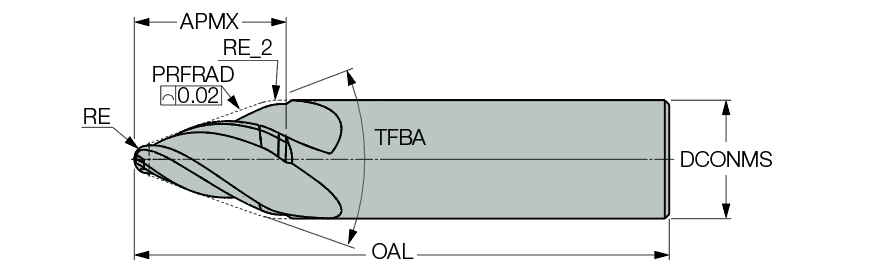

ETB-R2R250A11/20-4C10-72 IC902

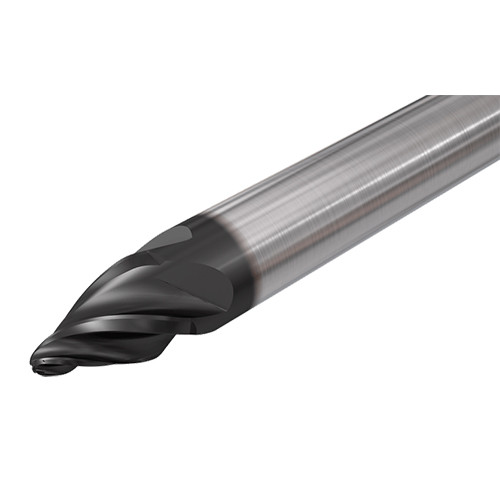

Tapered End Mill; 3.73 mm Dia. × 11 mm LOC × 72 mm OAL × 10 mm Shank Dia. ; 4 FL ; Carbide ; TiAlN ; IC902 ; Series E5077
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | IC902 |
| Application | | Profiling | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.73 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 11 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Flute Type | Tapered |
| Overall Length (OAL) | 72 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | E5077 |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | Solid carbide taper-shaped (Barrel) endmills for 3D profiling. Semi-finishing & finishing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.152
