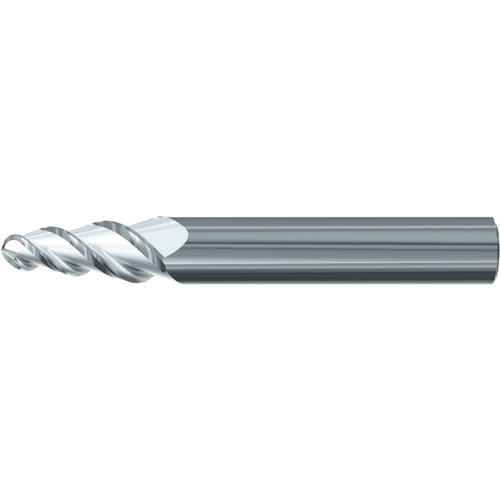

3441.06010A TAPERED EM
| Applicable Material | | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Body Half Taper Angle (BHTA) | 6 Degrees |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.8 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 19 mm | End Shape | Ball |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Corner Radius (RE) | 1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 62 mm | Tool Type | Tapered |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | 3441 |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for universal finishing applications in aluminum alloys and plastics • Design with three flutes and various taper angles • Polished chip space avoids built-up edge formation and improves chip removal • Ideal for finishing turbine components or other complex 5-axis components | Country of Origin | Germany |
Shipping Info
Package Weight
.999
