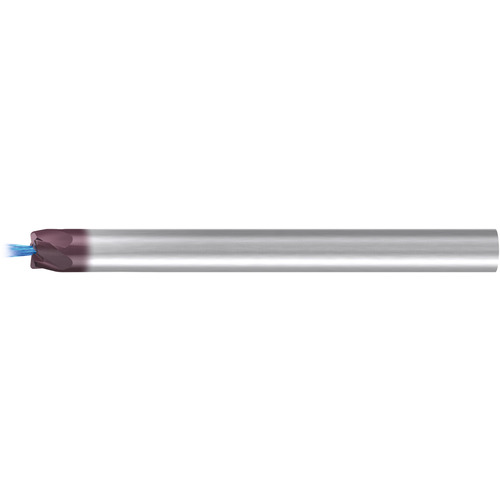

Tapered End Mills; 10 mm Dia. × 7 mm LOC × 10 mm Shank Dia. × 108 mm OAL; 7 FL; Carbide; TORUS; AlTiN; Series 2678AZ
Tapered End Mill; 10 mm Dia. × 7 mm LOC × 108 mm OAL × 10 mm Shank Dia. ; 7 FL ; Carbide ; AlTiN ; Series 2678AZ
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlTiN |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 7 mm | End Shape | TORUS |
| Flute Count (NOF) | 7 | Shank Type | Round |
| Corner Radius (RE) | 1 mm | Length Group | Long |
| Overall Length (OAL) | 108 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Tool Type | Taper Torus Long 8° |
| Body Half Taper Angle (BHTA) | 8 Degrees | Series/List # | 2678AZ |
Product Features
| Remarks | • Turbine carbide tapered torus end mill for finishing applications in high-strength materials, and nickel-based or titanium alloys • Multi-tooth geometry with variable flute spacing for low-vibration machining • Axial coolant hole for enhanced chip evacuation • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.3674
