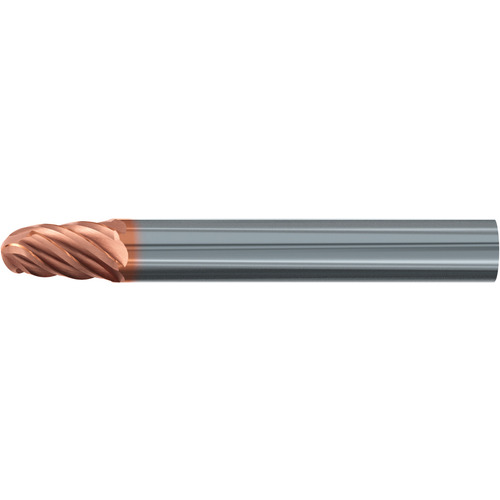

Tapered End Mills; 9.26 mm Dia. × 39 mm LOC × 12 mm Shank Dia. × 108 mm OAL; 3 | 6 FL; Carbide; Taper Ball Nose; AlTiN; Series 2679A
Tapered End Mill; 9.26 mm Dia. × 39 mm LOC × 108 mm OAL × 12 mm Shank Dia. ; Carbide ; AlTiN ; Series 2679A
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlTiN |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 9.26 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 39 mm | End Shape | Taper Ball Nose |
| Corner Radius (RE) | 3.5 mm | Shank Type | Round |
| Overall Length (OAL) | 108 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Tool Type | Taper Ball 4° |
| Body Half Taper Angle (BHTA) | 4 Degrees | Series/List # | 2679A |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for universal finishing applications in high-strength materials, and nickel-based or titanium alloys • Design with three flutes in ball nose section and six radial flutes • Ideal for pre-machining and finishing turbine components or other complex 5-axis components • TIALN coated for additional heat and wear resistance | Country of Origin | Germany |
Shipping Info
Package Weight
0.308
