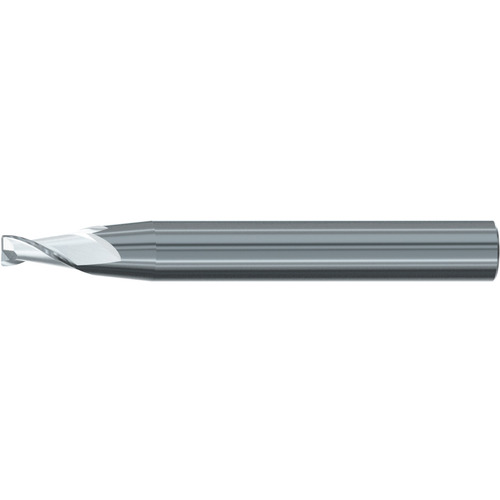

Tapered End Mills; 5 mm Dia. × 10 mm LOC × 8 mm Shank Dia. × 63 mm OAL; 2 FL; Carbide; Torus; Polished; Series 3445
Tapered End Mill; 5 mm Dia. × 10 mm LOC × 63 mm OAL × 8 mm Shank Dia. ; 2 FL ; Carbide ; Series 3445
| Applicable Material | | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Body Half Taper Angle (BHTA) | 3 Degrees |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 10 mm | End Shape | Torus |
| Flute Count (NOF) | 2 | Shank Type | Round |
| Corner Radius (RE) | 0.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Style | Finisher |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Taper Torus 3° |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | 3445 |
Product Features
| Remarks | • Turbine tapered carbide torus end mill for roughing applications in aluminum alloys and plastics • Design with two flutes and various taper angles • Ideal for pre-machining turbine components or other complex 5-axis components • Polished chip space avoids built-up edge formation and improves chip removal | Country of Origin | Germany |
Shipping Info
Package Weight
0.0792
