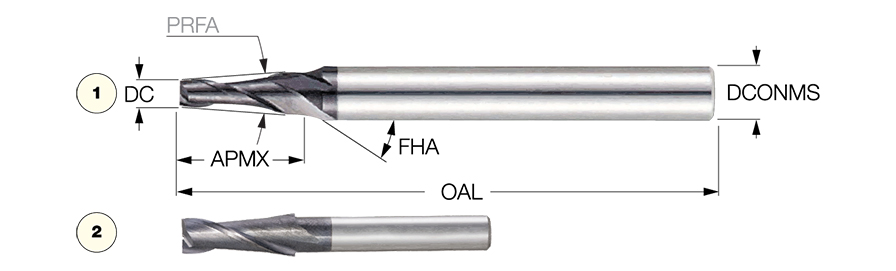

ECT-A2 05-15/0.5C06H60 IC903
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Hi Temp Alloys | | Grade | IC903 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 15 mm | Shank Type | Round |
| Flute Count (NOF) | 2 | Length Group | Medium |
| Overall Length (OAL) | 60 mm | Flute Type | Tapered |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Body Half Taper Angle (BHTA) | 0.5 Degrees | Series/List # | E5077 |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | 2 flute, 30° taper helix solid carbide endmills. Used on hardened steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
