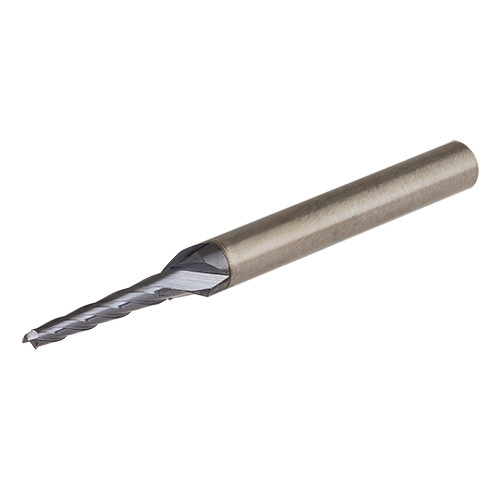

ECT-T4 015-12/0.5C4M45 IC903

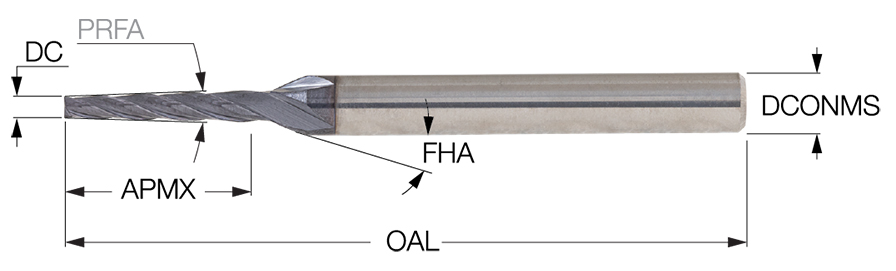

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | End Shape | Square |
| Application | | Slanted Shoulder & Chamfer | Slotting | | Shank Type | Round |
| Cutting Diameter (DC) | 1.5 mm | Length Group | Medium |
| Depth of Cut Maximum (APMX) | 12 mm | Flute Type | Tapered |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Overall Length (OAL) | 45 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Flute Helix Angle (FHA) | 25 Degrees | Series/List # | E5077 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Material | Carbide |
| Coating | AlTiN | Connection Code Machine Side (CCMS) | Cylindrical |
| Grade | IC903 | Maximum Feed per Tooth (fz(max)) | 0.012 mm/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
Product Features
| Family Description | 4 flute, 25° taper helix solid carbide endmills. Used for rib processing on hardened steel | Country of Origin | Korea |
Shipping Info
Package Weight
0.022
