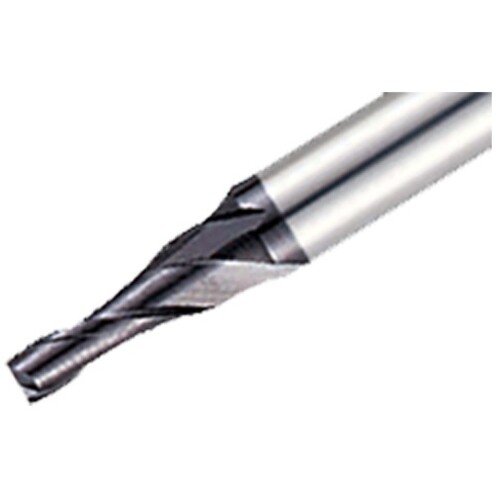

ECT-A2 03-10/1.0C06H55 IC903
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | | Cutting Edge Material | Carbide |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | End Shape | Square |
| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 10 mm | Length Group | Medium |
| Flute Count (NOF) | 2 | Flute Type | Tapered |
| Overall Length (OAL) | 55 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | E5077 |
| Body Half Taper Angle (BHTA) | 1.0 Degrees | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Grade | IC903 |
Product Features
| Family Description | 2 flute, 30° taper helix solid carbide endmills. Used on hardened steel. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.050
