ECTA20825/2.0C08H70 END

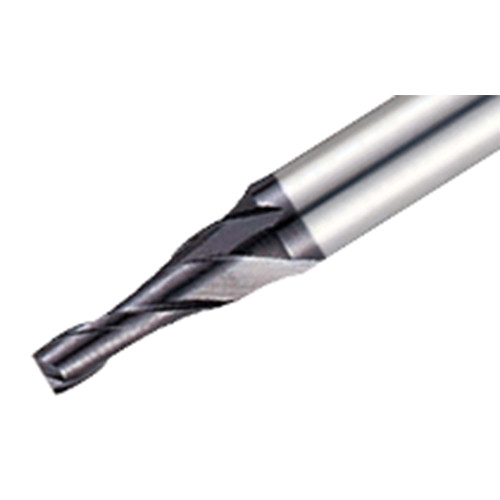

Tapered End Mill; 8 mm Dia. × 25 mm LOC × 70 mm OAL × 8 mm Shank Dia. ; 2 FL ; Carbide ; TiAlN ; IC903 ; Series E5077
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slanted Shoulder & Chamfer | | End Shape | Square |
| Cutting Diameter (DC) | 8 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 25 mm | Length Group | Medium |
| Flute Count (NOF) | 2 | Flute Type | Tapered |
| Overall Length (OAL) | 70 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | E5077 |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC903 | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 2 flute, 30° taper helix solid carbide endmills. Used on hardened steel | Country of Origin | Israel |
Shipping Info
Package Weight
0.11
