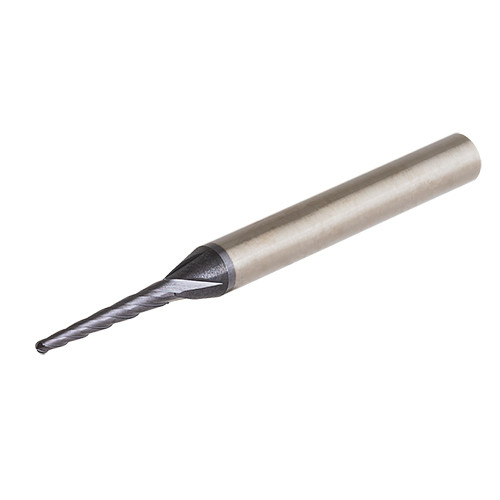

EBTT401516/0.5C4M50 END
Tapered End Mill; 1.5 mm Dia. × 16 mm LOC × 50 mm OAL × 4 mm Shank Dia. ; 4 FL ; Carbide ; AlTiN ; IC903 ; Series E5077
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profiling | | End Shape | Square |
| Cutting Diameter (DC) | 1.5 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 16 mm | Flute Type | Tapered |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Type | Solid ball nose |
| Flute Helix Angle (FHA) | 25 Degrees | Series/List # | E5077 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Body Material | Carbide |
| Body Half Taper Angle (BHTA) | 0.5 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.012 mm/tooth |
| Grade | IC903 | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
Product Features
| Family Description | 4 flute, 25° helix solid carbide tapered ball nose. Used for rib processing on hardened steel | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.022
