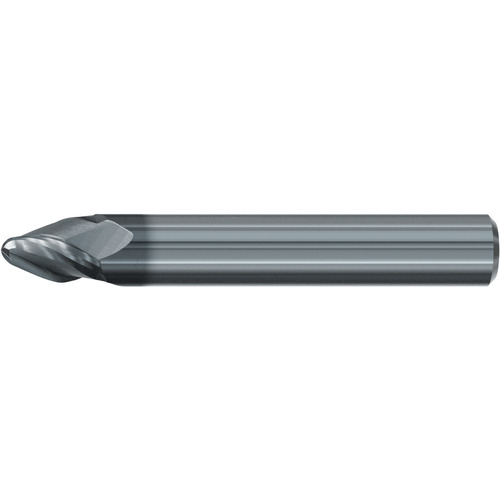

Tapered End Mills; 16 mm Dia. × 18.5 mm LOC × 16 mm Shank Dia. × 108 mm OAL; 3 FL; Carbide; Circle Segment Taper Form; AlCr; Series 3540L
Tapered End Mill; 16 mm Dia. × 18.5 mm LOC × 108 mm OAL × 16 mm Shank Dia. ; 3 FL ; Carbide ; AlCr ; Series 3540L
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlCr |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 16 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 18.5 mm | End Shape | Circle Segment Taper Form |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Overall Length (OAL) | 108 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | 30 Degrees | Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | Taper-Form A |
| Body Half Taper Angle (BHTA) | 20 Degrees | Series/List # | 3540L |
Product Features
| Remarks | • Circle segment carbide end mill in taper form for finishing applications in many materials, including high-strength materials • Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% compared to a ball nose end mill • In Form A or Form B for different tilt angles in steep or flat areas • High form tolerance of ± 0.01 mm for highest precision | Country of Origin | Germany |
Shipping Info
Package Weight
0.625
