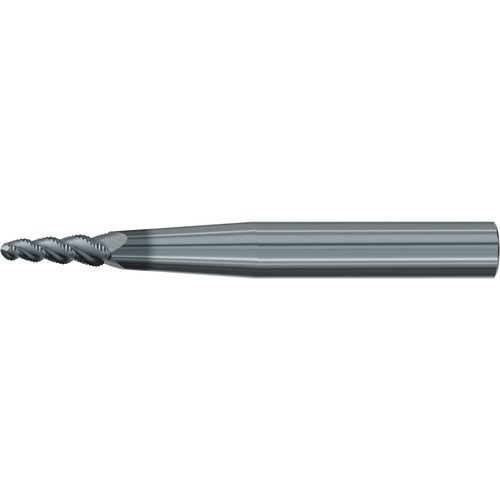

Tapered End Mills; 6.5 mm Dia. × 30 mm LOC × 12 mm Shank Dia. × 120 mm OAL; 3 FL; Carbide; Taper Ball Nose; AlCr; Series 3546L
Tapered End Mill; 6.5 mm Dia. × 30 mm LOC × 120 mm OAL × 12 mm Shank Dia. ; 3 FL ; Carbide ; AlCr ; Series 3546L
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlCr |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 6.5 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 30 mm | End Shape | Taper Ball Nose |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Style | Finisher |
| Flute Helix Angle (FHA) | 45 Degrees | Tool Type | Taper Ball 4° |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | 3546L |
| Body Half Taper Angle (BHTA) | 4 Degrees |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for roughing applications in many particularly difficult to machine and tough materials • Design with three flutes in roughing profile • Ideal for pre-machining turbine components or other complex 5-axis components made of aerospace alloys, titanium or Inconel • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.297
