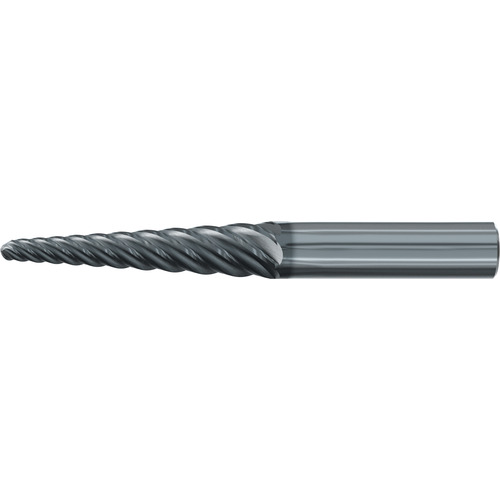

Tapered End Mills; 4 mm Dia. × 87 mm LOC × 16 mm Shank Dia. × 150 mm OAL; 3 | 6 FL; Carbide; Taper Ball Nose; AlCr; Series 3548L
Tapered End Mill; 4 mm Dia. × 87 mm LOC × 150 mm OAL × 16 mm Shank Dia. ; Carbide ; AlCr ; Series 3548L
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlCr |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 4 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 87 mm | End Shape | Taper Ball Nose |
| Corner Radius (RE) | 2 mm | Shank Type | Round |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees | Style | Finisher |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Tool Type | Taper Ball 4° |
| Body Half Taper Angle (BHTA) | 4 Degrees | Series/List # | 3548L |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for finishing applications in many particularly difficult to machine and tough materials • Design with three flutes in ball nose section and six radial flutes • Ideal for finishing turbine components or other complex 5-axis components • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.5654
