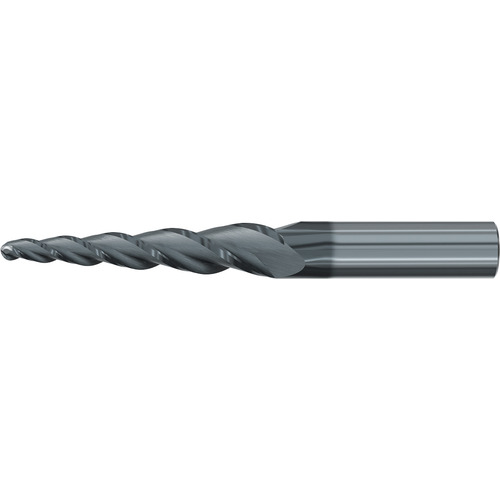

Tapered End Mills; 8 mm Dia. × 89 mm LOC × 20 mm Shank Dia. × 155 mm OAL; 3 FL; Carbide; Taper Ball Nose; AlCr; Series 3550L
Tapered End Mill; 8 mm Dia. × 89 mm LOC × 155 mm OAL × 20 mm Shank Dia. ; 3 FL ; Carbide ; AlCr ; Series 3550L
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlCr |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 89 mm | End Shape | Taper Ball Nose |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Corner Radius (RE) | 4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 155 mm | Style | Finisher |
| Flute Helix Angle (FHA) | 34 Degrees | 35 Degrees | 36 Degrees | Tool Type | Taper Ball 4° |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Series/List # | 3550L |
| Body Half Taper Angle (BHTA) | 4 Degrees |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for finishing applications in many particularly difficult to machine and tough materials • Design with three flutes in finishing profile • Ideal for finishing turbine components or other complex 5-axis components • ALCR coating for longer tool life and very good suitability for high-alloyed materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.9328
