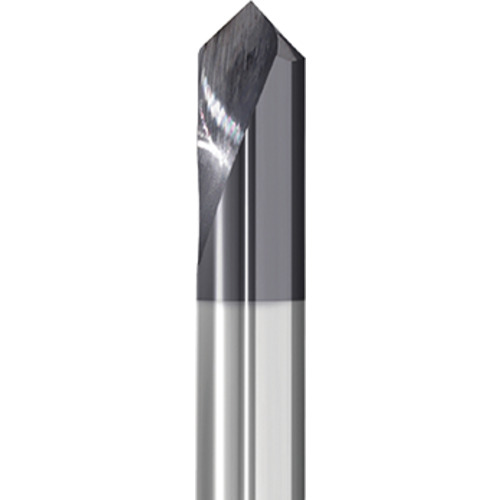

3/8 CARB SPOT DRILL 100°
Drill Bit; 3/8″ Dia. × 2-1/2″ OAL × 3/8″ Shank Dia. ; 100 Degrees ; 2 FL ; Carbide ; Uncoated ; C-2 Sub-Micron ; Series 402
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Application | Drilling |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Decimal Equivalent | 0.375″ | Point Shape | Drill Point |
| Point Angle (SIG) | 100 Degrees | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees | Length Group | Short |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-1/2″ | Series/List # | 402 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Grade | C-2 Sub-Micron |
| Coating | Uncoated | Length Chip Flute (LCF) | 1″ |
| Cutting Edge Material | Carbide | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
