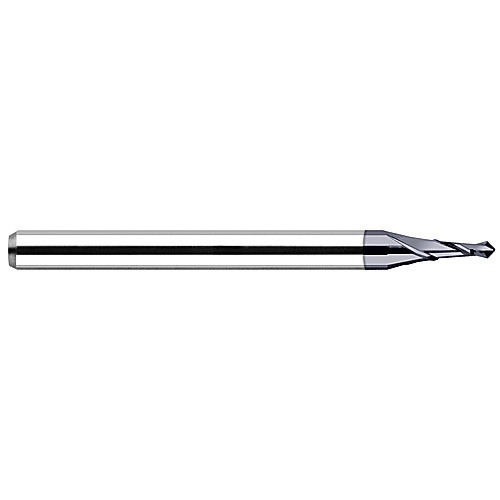

0.0620″ (1/16) Drill DIA × 0.0930″ (3/32) Flute Length- 90 Degree - 2 Flute - AlTiN Coated Miniature Drills - Spotting Drills
Drill Bit; 1/16″ Dia. × 3/32″ LPR × 1-1/2″ OAL × 1/8″ Shank Dia. ; 90 Degrees ; 2 FL ; Round Shank ; Carbide ; AlTiN
| Drill Bit Size / Cutting Diameter (DC) | 1/16″ | Coating | AlTiN |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0625″ | Flute Length | 3/32″ |
| Point Angle (SIG) | 90 Degrees | Measurement Type | Inch |
| Angle | 90 Degrees | Length Group | 1.5D |
| Protruding Length (LPR) | 3/32″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Cutting Length | 3/32″ |
| Overall Length (OAL) | 1-1/2″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Length Chip Flute (LCF) | 3/32″ |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
