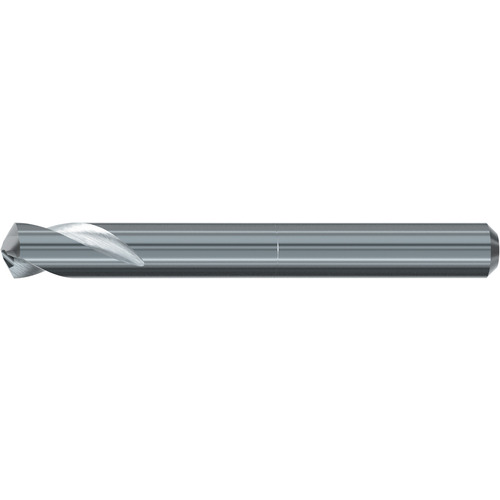

NC Spotting Drill; 6 mm Dia. × 2-1/4″ OAL; 120 Degrees; Carbide; Bright; Series FUT3200
Drill Bit; 6 mm Dia. × 2-1/4″ OAL × 6 mm Shank Dia. ; 120 Degrees ; 2 FL ; Round Shank ; Carbide ; Uncoated ; Sub-Micro Grain ; Series EFUT3200
| Drill Bit Size / Cutting Diameter (DC) | 6 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6 mm | Applicable Material | | Universal Materials | |
| Point Angle (SIG) | 120 Degrees | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-1/4″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | EFUT3200 |
| Shank Type | Round | Grade | Sub-Micro Grain |
| Coating | Uncoated |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
