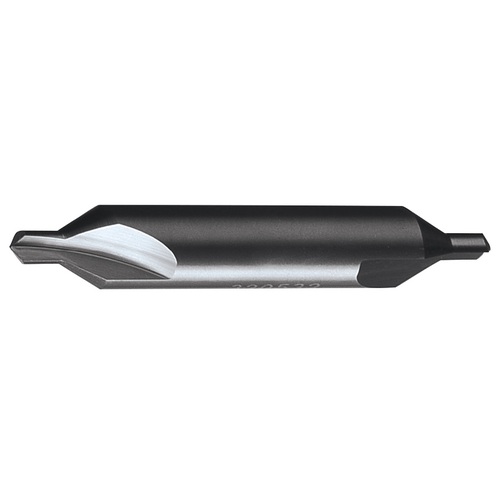

#5 × 2-3/4″ OAL 60 Degree Carbide Plain Center Drill Bright
Drill Bit; 3/16″ Dia. × 2-3/4″ OAL × 7/16″ Shank Dia. ; 2 FL ; Round Shank ; Carbide ; Uncoated ; Series 1798
| Style | Plain | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) | 3/16″ | Drill Min. Diameter | 0.5 mm |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/16″ | Size | #5 |
| Decimal Equivalent | 0.1875″ | Measurement Type | Inch |
| Angle | 60 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Tool Type | Center Drill |
| Overall Length (OAL) | 2-3/4″ | Series/List # | 1798 |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Length Chip Flute (LCF) | 1″ |
| Shank Type | Round | Single / Double End | Double End |
| Coating | Uncoated |
Product Features
| Country of Origin | USA |
