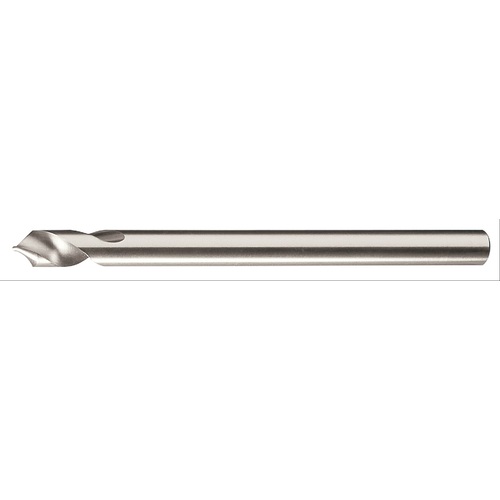

1″ × 8″ OAL 90 Degree HSS Radial NC Spotting Drills Bright
Drill Bit; 1″ Dia. × 1-3/4″ LPR × 8″ OAL × 1″ Shank Dia. ; 90 Degrees ; 2 FL ; Round Shank ; HSS ; Uncoated ; Series 2645
| Drill Bit Size / Cutting Diameter (DC) | 1″ | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1″ | Flute Length | 1-3/4″ |
| Decimal Equivalent | 1″ | Size | 1″ |
| Point Angle (SIG) | 90 Degrees | Point Shape | Radial |
| Protruding Length (LPR) | 1-3/4″ | Measurement Type | Inch |
| Flute Helix Angle (FHA) | CW | Length Group | Long |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 8″ | Tool Type | Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Length (LS) | 6-1/4″ |
| Shank Type | Round | Series/List # | 2645 |
| Coating | Uncoated | Length Chip Flute (LCF) | 1-3/4″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.601
