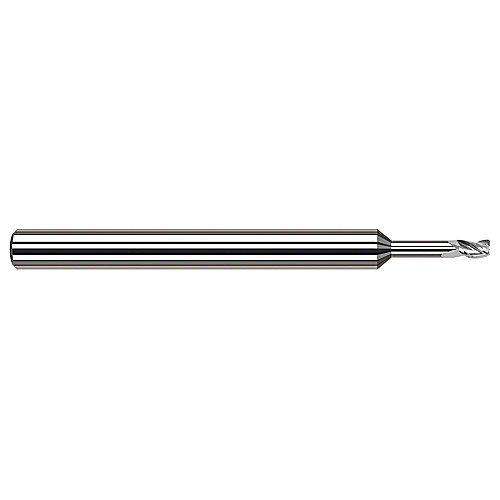

3 Flute - 0.1875″ (3/16) Cutter DIA × 0.0300″ Radius × 0.2850″ LOC × 1.0000″ (1) Reach Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute
SQ End Mill; 3/16″ Dia. × 0.285″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/16″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Neck Diameter (DN) | 0.183″ |
| Depth of Cut Maximum (APMX) | 0.285″ | Length Group | 5D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.188″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 42 Degrees | Shank Size (SS) | 3/16″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1″ | Single / Double End | Single End |
| Applicable Material | | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
