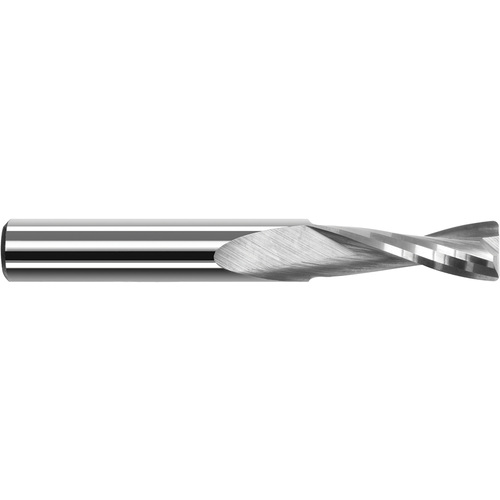

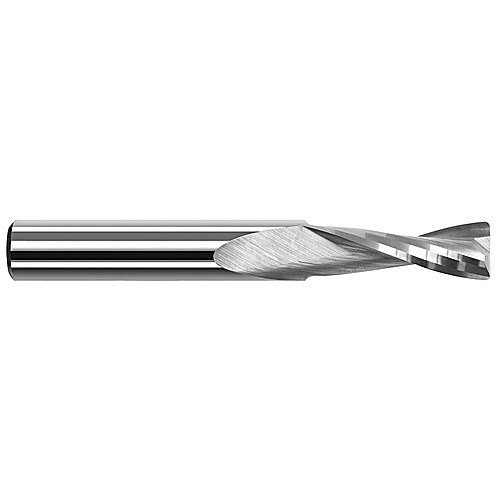

2 Flute - 0.0310″ (1/32) Cutter DIA × 0.0050″ Radius × 0.0930″ (3/32) LOC End Mills for Plastics - Corner Radius Upcut
Corner Radius End Mill; 1/32″ Dia. × 3/32″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/32″ | Applicable Material | | Other Non-Metallic Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.005″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Length Group | 3D |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Decimal Equivalent | 0.031″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 20 Degrees | Shank Size (SS) | 1/8″ |
| Shank Type | Round | Corner Radius (RE) / Chamfer Width (CHW) | 0.005″ |
| End Shape | Corner Radius | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/32″ | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
