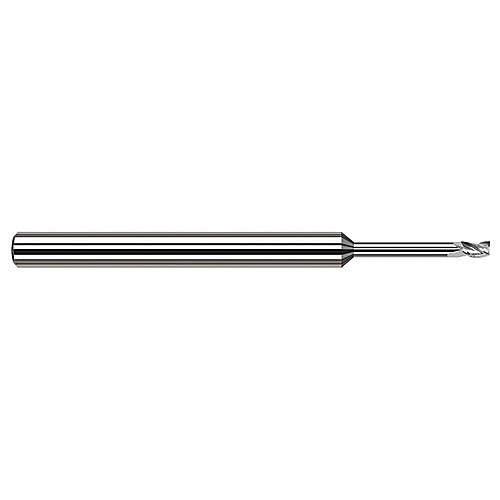

3 Flute - 0.1718″ Cutter DIA × 0.2580″ LOC × 1.3750″ (1-3/8) Reach Miniature End Mills - Square - Long Reach, Stub Flute
Square End Mill; 0.1718″ Dia. × 0.258″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 0.1718″ | Usable Length (LU) | 1-3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Neck Diameter (DN) | 0.167″ |
| Depth of Cut Maximum (APMX) | 0.258″ | Length Group | 8D |
| Overall Length (OAL) | 3″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Shank Size (SS) | 3/16″ |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Square |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.05
