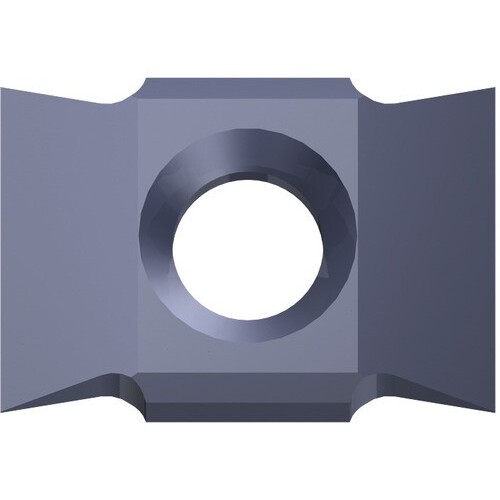

1/6-10 11 Thread Milling Insert-TIALN
| Thread Standard | UN | M | MF | Threads per Inch Minimum (TPIN) | 6 |
| Insert Length (INSL) | 1/4″ | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Insert Width (W1) | 3/8″ | Size | #11 |
| Application | | Internal Thread Milling | | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlTiN |
| Threads per Inch Maximum (TPIX) | 10 | Series/List # | GF643107 |
Product Features
| Remarks | • Indexable insert for Emuge Gigant-IC threading system. • 4-tooth carbide indexable inserts for internal threads • Economical system for creating large diameter threads. | Country of Origin | Germany |
Shipping Info
Package Length
2.50000
Package Width
1.00000
Package Height
.50000
Package Weight
0.002
