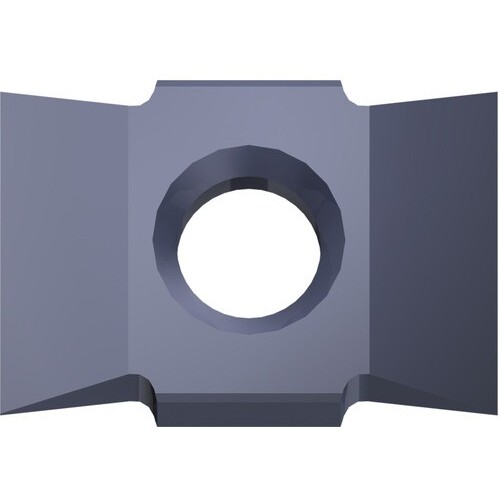

1/9-16 14 Thread Milling Insert-TIALN
| Thread Standard | UN | M | MF | Threads per Inch Minimum (TPIN) | 9 |
| Insert Length (INSL) | 1/2″ | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Insert Width (W1) | 3/4″ | Size | #14 |
| Application | | Internal Thread Milling | | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Coating | AlTiN |
| Threads per Inch Maximum (TPIX) | 16 | Series/List # | GF643407 |
Product Features
| Remarks | • Indexable insert for Emuge Gigant-IC threading system. • 4-tooth carbide indexable inserts for internal threads • Economical system for creating large diameter threads. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
