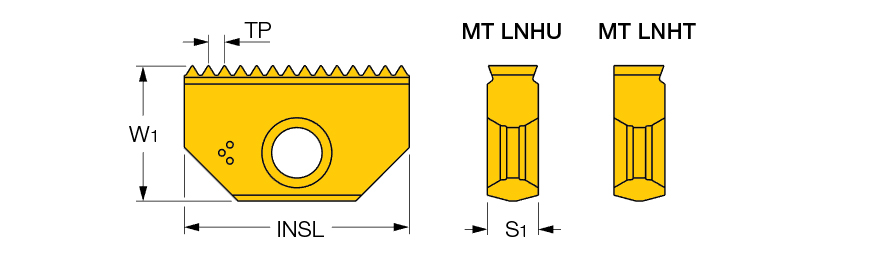

MT LNHT 1202 18NPSF 908
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 1.411 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 18 | Coating | TiAlN |
| Insert Length (INSL) | 0.472″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.256″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.114″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPSF |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | External & internal NPSF (Dryseal American National Standard Straight Pipe Thread) full profile thread milling inserts. Used with soft or ductile materials which will tend to adjust at assembly to the taper of external threads. | Country of Origin | Israel |
| Remarks | The same insert for external & internal threading For cutting speed recommendations, Click on More Info ANSI/ASME B1.20.1 Internal & External tolerance: Standard NPS |
Shipping Info
Package Weight
0.013
