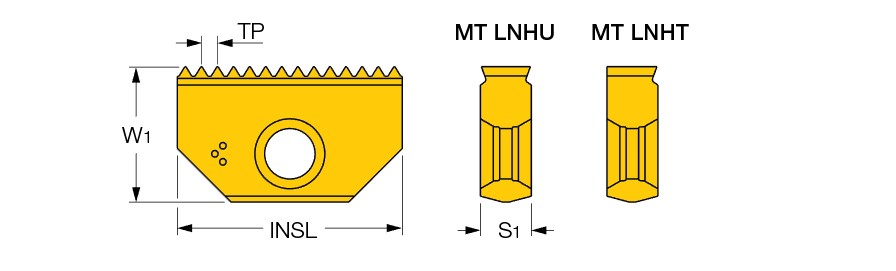

MT LNHU 1403 18NPS 908
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 1.411 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 18 | Coating | TiAlN |
| Insert Length (INSL) | 0.551″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.295″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.122″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPS |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | External & internal NPS (American Standard Straight Pipe Thread) full profile thread milling inserts. Used for mechanical joints and pipe fittings. | Country of Origin | Israel |
| Remarks | The same insert for external & internal threading For cutting speed recommendations, Click on More Info |
Shipping Info
Package Weight
0.017
