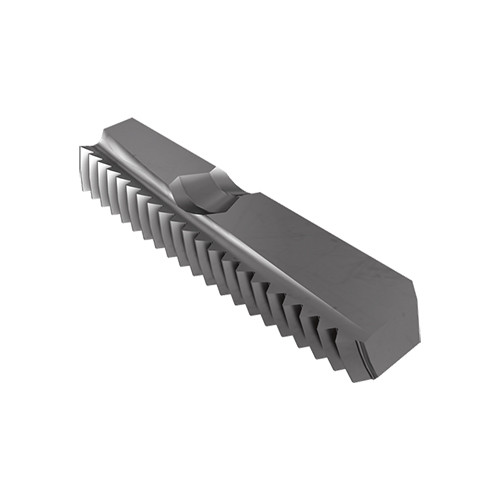

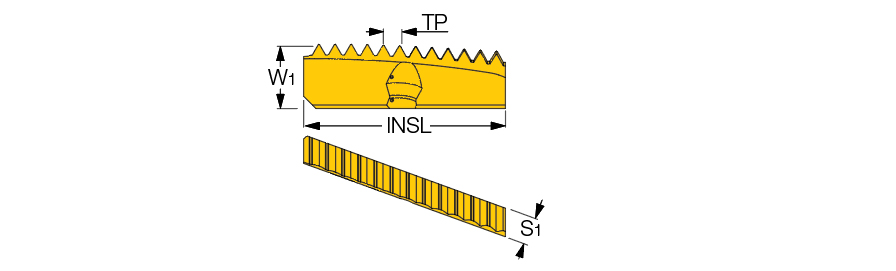

MTH 32 E 8 UN IC908
| Thread Standard | THFT | | Shape | 90° Rectangular |
| Threads per Inch (TPI) | 8 | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 1.26″ | Coating | TiAlN |
| Insert Width (W1) | 0.354″ | Tool Type | Threading Regular Inserts |
| Cutting Position | External | Measurement Type | Inch |
| Application | | External Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
| Grade | IC908 | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | Helical thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) external full profile threads. Application: general industry. | Country of Origin | Israel |
| Remarks | Used for UN, UNC, UNF, UNEF and UNS thread profiles For cutting speed recommendations, Click on More Info |
