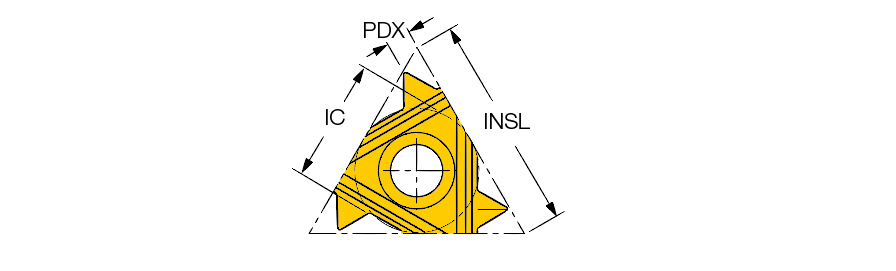

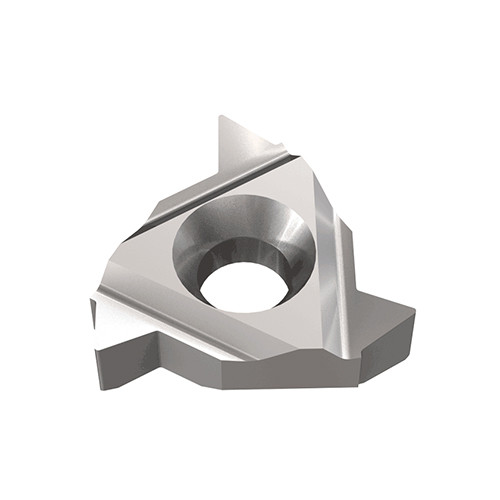

MT3 1160D IC908
| Thread Standard | THFT | | Size | 1/4″ |
| Insert Length (INSL) | 0.433″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/4″ | Coating | TiAlN |
| Cutting Position | External | Pitch External | 0.75-1.50″ |
| Application | | External Thread Milling | Internal Thread Milling | | Pitch Internal | 1.0-2.0″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 60° Triangle | Body Material | Carbide |
| Pitch TPI Internal (TPI Int) | 24-12 | Thread Form Type (THFT) | VP60 |
| Pitch TPI External (TPI Ext) | 32-14 | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | 60° partial profile laydown thread milling inserts for general industry. | Country of Origin | Israel |
| Remarks | DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A |
Shipping Info
Package Weight
0.008
