MT14 I 20 UN IC908

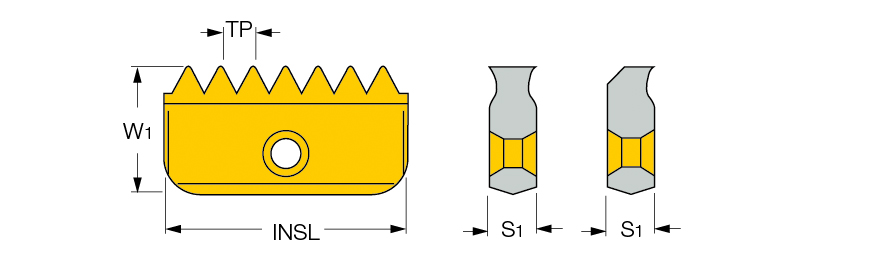

| Threads per Inch (TPI) | 20 | Shape | 90° Rectangular |
| Insert Length (INSL) | 0.551″ | Pitch TPI External (TPI Ext) | 16 |
| Insert Width (W1) | 0.311″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.126″ | Coating | TiAlN |
| Cutting Position | Internal | Tool Type | Threading Regular Insert |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Measurement Type | Inch |
| Grade | IC908 |
Product Features
| Family Description | Thread milling inserts for American (UN, UNC, UNF, UNEF, UNS) full profile threads. Application: general industry. | Country of Origin | IL |
| Remarks | For cutting speed recommendations, Click on "More Info". |
Shipping Info
Package Weight
.0170
