| Threads per Inch (TPI) | 18 | Shape | 90° Rectangular |
| Insert Length (INSL) | 0.018″ | Pitch TPI External (TPI Ext) | 16 |
| Insert Width (W1) | 0.01″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.004″ | Coating | TiAlN |
| Cutting Position | External | Tool Type | Threading Regular Insert |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Measurement Type | Inch |
| Grade | IC908 |

Product Features

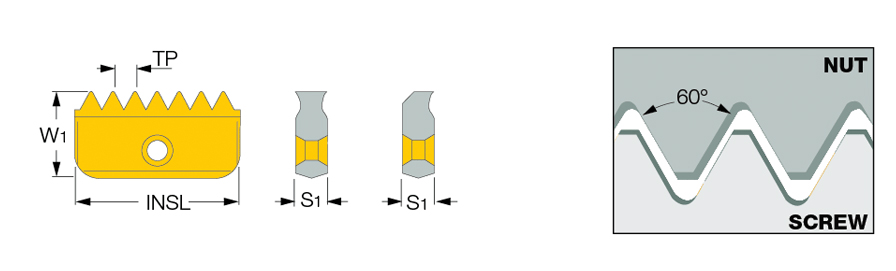

| Family Description | External & internal NPSF (Dryseal American National Standard Straight Pipe Thread) full profile thread milling inserts. Used with soft or ductile materials which will tend to adjust at assembly to the taper of external threads. | Country of Origin | Israel |
| Remarks | The same insert for external & internal thread. For cutting speed recommendations, Click on "More Info". |
Shipping Info
Package Weight
.0220
