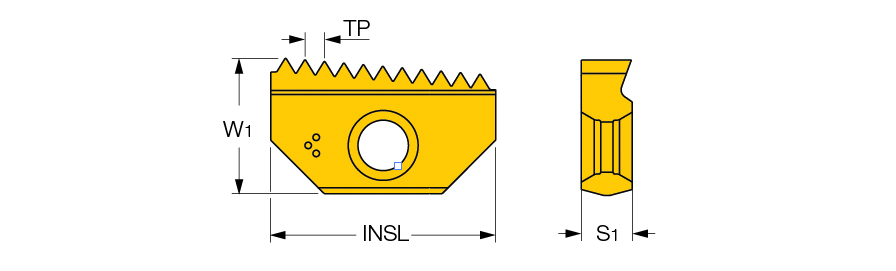

MT LNHT 2104 14NPTF 908
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 1.814 mm | Shape | 90° Rectangular |
| Threads per Inch (TPI) | 14 | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.827″ | Coating | TiAlN |
| Insert Width (W1) | 0.496″ | Tool Type | Threading Regular Inserts |
| Insert Thickness Total (S1) | 0.189″ | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPTF60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | External and internal NPTF full profile thread milling inserts for steam, gas and water pipes | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ANSI/ASME B1.20.3 Standard NPTF External tolerance: ANSI/ASME B1.20.3 Standard NPTF |
Shipping Info
Package Weight
0.037
