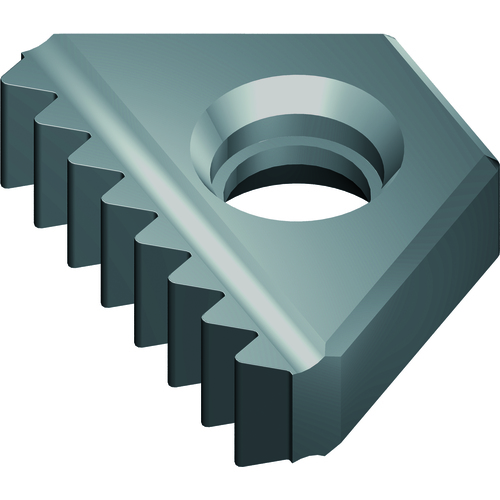

5I8UNT MVK2 5/8 IC INT ernal Hand 8 TPI - Threading Insert
Additional Tariff Surcharge of 10 %
| Thread Standard | UN | Applicable Material | | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 8 | Grade | VK2 |
| Insert Length (INSL) | 1.08″ | Size | 5/8″ |
| Cutting Position | Internal | Tool Type | American UN Thread Milling Insert |
Product Features
| Remarks | •American UN For CNC Machining Centers and Milling Machines •Need to make a thread on a non-rotatable bulky part •Higher machine speeds •Multi-tooth type inserts •Less downtime and tooling changes •Cost saving tooling system less expensive than HSS Taps and Dies •Less machine power required •Better thread surface finish yields better sealing and engagement •No undercut is necessary due to CNC control accuracy •Carbide inserts for a wide variety of workpiece materials | Country of Origin | USA |
Shipping Info
Package Weight
0.02
