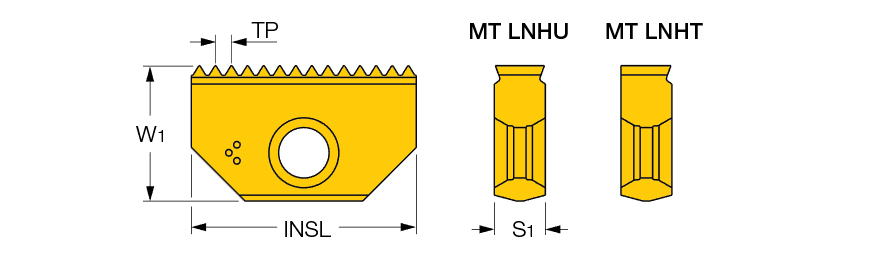

MT LNHU 1403 19W 908
| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 1.337 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 19 | Coating | TiAlN |
| Insert Length (INSL) | 0.551″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.311″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.126″ | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | BSP(G) |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | EXT |
Product Features
| Family Description | External & internal Whitworth (BSW, BSF, BSP) full profile thread milling inserts for fittings and pipe couplings. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. Internal tolerance: ISO 228-1 Medium class External tolerance: ISO 228-1 Medium class |
Shipping Info
Package Weight
0.017
