MT30 6 ABUT IC908

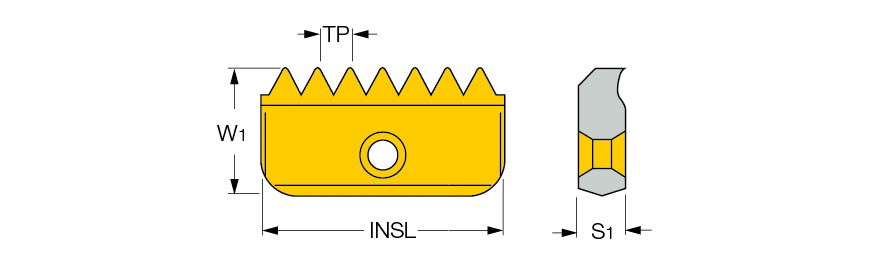

| Threads per Inch (TPI) | 6 | Shape | 90° Rectangular |
| Insert Length (INSL) | 1.181″ | Pitch TPI External (TPI Ext) | 16 |
| Insert Width (W1) | 0.63″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.217″ | Coating | TiAlN |
| Cutting Position | External | Tool Type | Threading Regular Insert |
| Applicable Material | Steel|Stainless Steel|Cast Iron|Hard Materials|Hi-Temp Alloys | Measurement Type | Inch |
| Grade | IC908 |
Product Features
| Family Description | External & internal American Buttress (ANSI B1.9-1973 Class 2) thread Milling Inserts, for high force transmission in one direction. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on "More Info". |
Shipping Info
Package Weight
0.022
