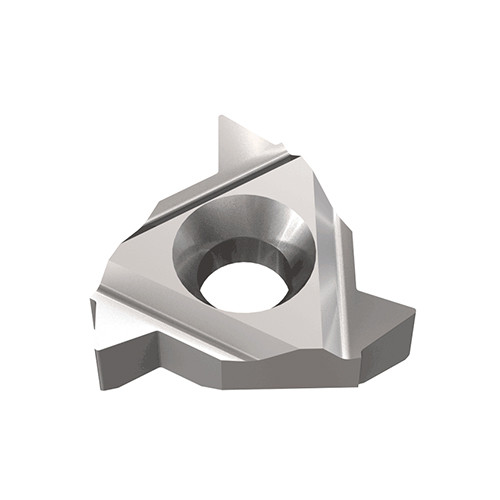

MT3 1655D IC908
| Thread Standard | THFT | | Threads per Inch Minimum (TPIN) | 8 Threads/" |

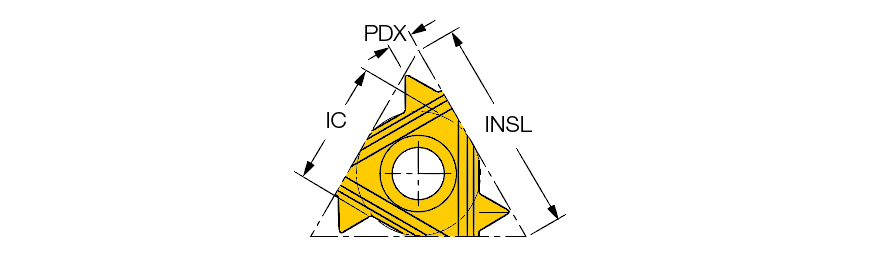

| Insert Length (INSL) | 0.649″ | Size | 3/8″ |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Edge Material | Carbide |
| Cutting Position | External | Coating | TiAlN |
| Application | | External Thread Milling | Internal Thread Milling | | Tool Type | Threading Regular Inserts |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | 60° Triangle | Thread Form Type (THFT) | BSP(G) |
| Threads per Inch Maximum (TPIX) | 12 Threads/" | Thread Type (TTP_DF2) | INT |
Product Features
| Family Description | 55° partial profile laydown thread milling inserts for general industry. | Country of Origin | Israel |
| Remarks | B.S.84 Internal & External tolerance: Medium class |
Shipping Info
Package Weight
0.013
