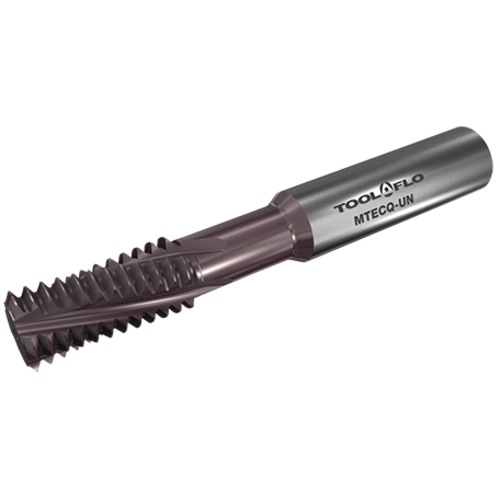

MTECQ 1010D30 20UN AC22
Thread Mill; 12 - 20 Threads/" ; 0.394″ Shank Dia. × 2.874″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | 12 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 Threads/" | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | INT |

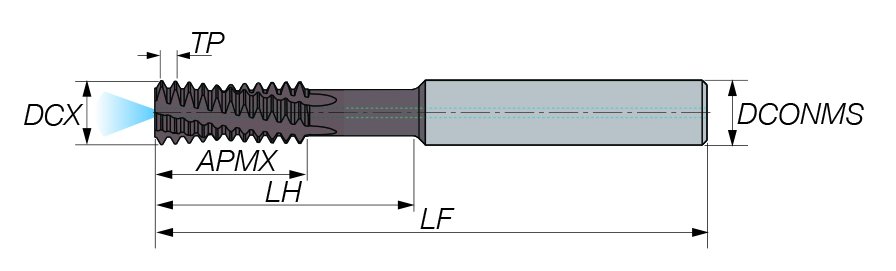

| Connection Diameter Machine Side (DCONMS) | 0.394″ | Usable Length (LU) | 1.201″ |
| Cutting Diameter (DC) | 0.394″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2.874″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 0.701″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal UN Profile Threading | Country of Origin | Israel |
Shipping Info
Package Weight
0.16
