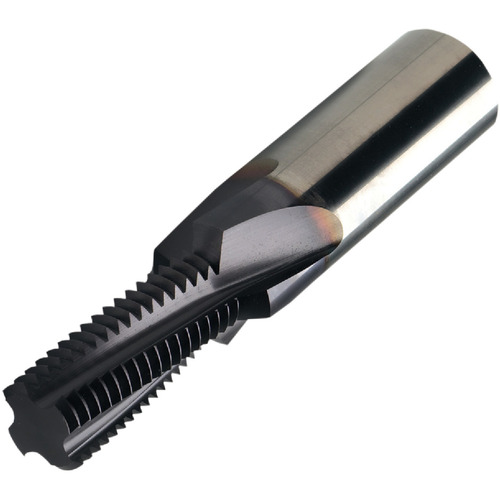

R217.14C136200CC34K 1630 COROMILL PLURA
Thread Mill; M16 × 2 mm ; 18 mm Shank Dia. × 92 mm OAL ; Carbide ; TiAlN2
Additional Tariff Surcharge of 8 %
| Thread Size | M16 | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Pitch (TP) | 2 mm | Shank Type | Round |
| Thread Standard | Metric | Coating | TiAlN2 |
| Connection Diameter Machine Side (DCONMS) | 18 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Diameter (DC) | 13.6 mm | Flute Helix Angle (FHA) | 10 Degrees|CW |
| Functional Length (LF) | 34.4 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 92 mm | Cutting Position | Internal |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.595
