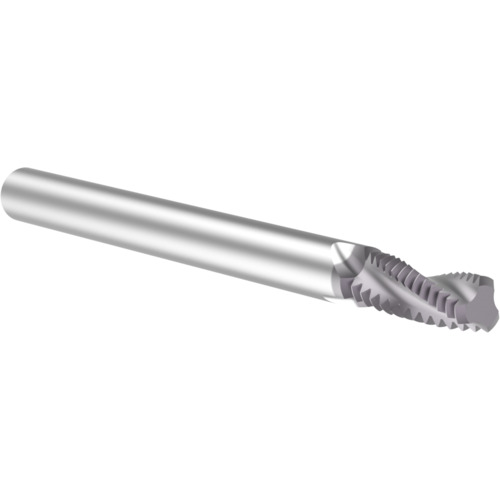

M6X1.0 METRIC TIALN THREAD MILL
Thread Mill; 6 mm × 1 mm ; 3/16″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; Series Threadmills USA
| Thread Size | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Diameter Size (TDZ) | 6 mm | Cutting Edge Material | Carbide |
| Thread Standard | MC | Flute Type | Helical |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Usable Length (LU) | 1/2″ |
| Cutting Diameter (DC) | 0.17″ | Series/List # | Threadmills USA |
| Functional Length (LF) | 1/2″ | Measurement Type | Metric |
| Overall Length (OAL) | 2-1/2″ | Length Group | 2xD |
| Flute Count (NOF) | 3 | Tool Type | Solid Carbide Thread Mills |
| Coolant Supply Property (CSP) | External | Depth of Cut Maximum (APMX) | 1/2″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | External Thread Milling | Internal Thread Milling |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.03
