3/8-24 UN TIALN THREAD

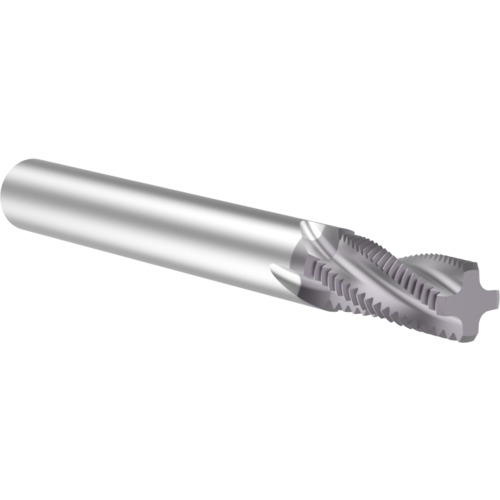

Thread Mill; 3/8″ - 24 ; 5/16″ Shank Dia. × 3″ OAL ; Carbide ; TiAlN ; Series Threadmills USA
| Thread Size | 3/8″ | Pitch TPI Internal (TPI Int) | 24 |
| Threads per Inch (TPI) | 24 | Pitch TPI External (TPI Ext) | 24 |
| Thread Diameter Size (TDZ) | 3/8″ | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | UNF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Flute Type | Helical |
| Cutting Diameter (DC) | 0.285″ | Usable Length (LU) | 3/4″ |
| Functional Length (LF) | 3/4″ | Series/List # | Threadmills USA |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Length Group | 2xD |
| Coolant Supply Property (CSP) | External | Tool Type | Solid Carbide Thread Mills |
| Shank Type | Round | Depth of Cut Maximum (APMX) | 3/4″ |
| Coating | TiAlN | Cutting Direction (HAND) | Right Hand |
| Application | External Thread Milling | Internal Thread Milling | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
