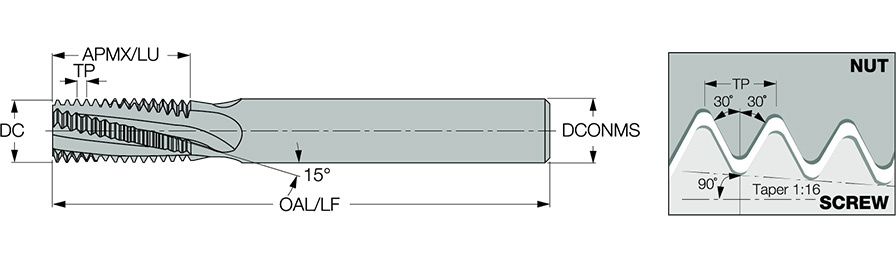

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Cutting Position | External |
| Cutting Diameter (DC) | 1/2″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/2″ | Grade | IC908 |
| Flute Count (NOF) | 4 | Tool Type | Solid carbide thread mills |
| Shank Type | Round | Depth of Cut Maximum (APMX) | 0.82″ |
| Coating | TiAlN | Cutting Direction (HAND) | Left Hand|Right Hand |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Flute Helix Angle (FHA) | 15 Degrees | Thread Form Type (THFT) | NPTF60 |
| Cutting Edge Material | Carbide |
Product Features

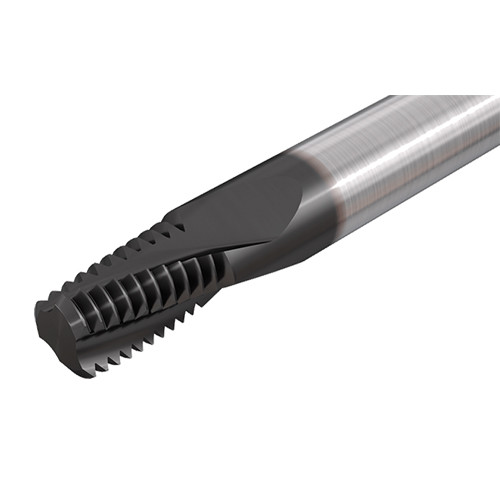

| Family Description | Solid carbide threading endmills for an external or internal NPTF thread profile. | Country of Origin | Israel |
| Remarks | Internal & External tolerance: ANSI/ASME B1.20.3 - Standard NPTF |
Shipping Info
Package Weight
0.010
