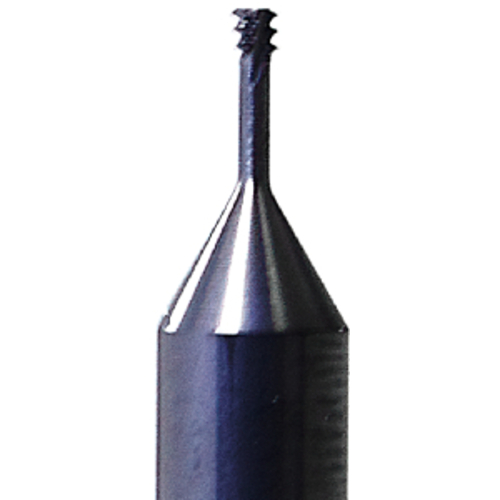

3-48 & 4-48 - Mini Mill 2XD Thread Mill - UN Thread
Thread Mill; #3-4 - 48 ; 1/4″ Shank Dia. × 2-1/2″ OAL
| Thread Size | #3-4 | Overall Length (OAL) | 2-1/2″ |
| Threads per Inch (TPI) | 48 | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.2″ |
| Cutting Diameter (DC) | 0.075″ | Measurement Type | Wire Gauge |
Product Features
| Remarks | •TiAlN coating •Run at medium to high cutting speeds •General purpose for all materials •3-Flute | Country of Origin | Israel |
Shipping Info
Package Weight
0.05
