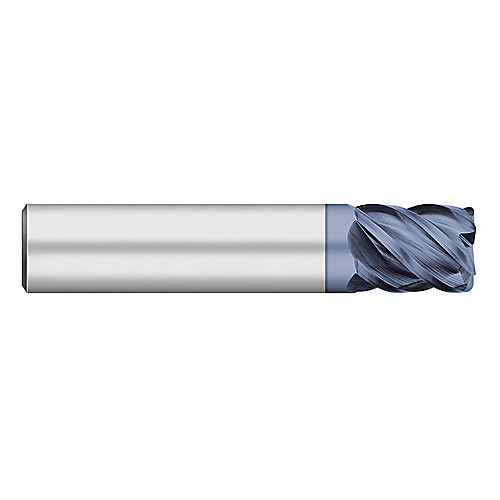

617 3/8 5F STUB 45 R0.020
Corner Radius End Mill; 3/8″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2″ | Decimal Equivalent | 0.375″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Flute Count (NOF) | 5 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.140
