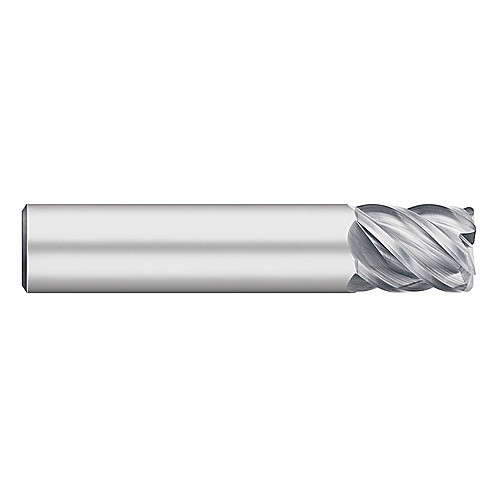

616 3/4 5F STUB R.040 45D
Corner Radius End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/4″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.75″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Corner Radius (RE) / Chamfer Width (CHW) | 0.04″ |
| Flute Count (NOF) | 5 | Center Cutting | Yes |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.621
