46Y050ISR6RA050 IN2005

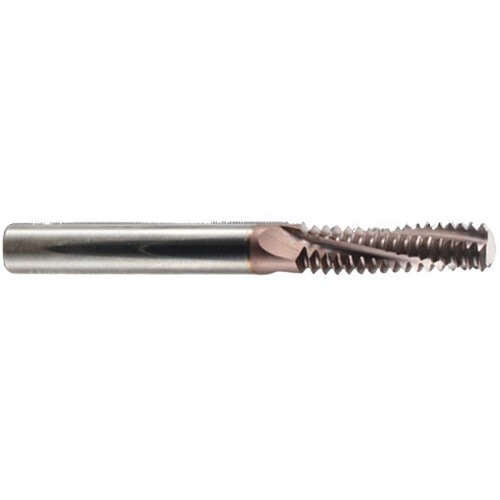

Thread Mill; M3 × 0.5 mm × 1/4″ Shank Dia. × 2-1/2″ OAL ; TiAlN IN2005
| Thread Size | M03 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Pitch (TP) | 0.02″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Position | Internal |
| Cutting Diameter (DC) | 0.087 | Usable Length (LU) | 0.21″ |
| Functional Length (LF) | 39 mm | Series/List # | MTB |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | IN2005 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN | Body Material | Steel |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.043
